Front End Loaders (FEL) 95-350hp
Widely known as the "Front End Loader People" since 1984, McCormack Industries produces the widest range of Front End Loaders for new and used tractors. This MC120 to MC200 range is manufactured for large tractors from 95 to 350hp.
Unlike some loaders on the market these loader arms are quality made and durable.
Backed by ongoing support and service, all McCormack Industries Loaders have replaceable parts to ensure the longevity of your loader and attachments
FEL Standard
Inclusions
McCormack Industries Loaders come standard with:
- Quick Hitch**
- Self-leveling mechanism
- Heavy duty construction
- TMA Loader standard compliance
- Diverter for 3rd function hydraulics
- 2 Bank control valve with joystick
- Greaseable pivot points
- Level Gauge
- Replaceable Hardened Bushes
- Quick detach system (from tractor)
- Paint colour to match your machine's brand
- Reliable after sales support and spare parts availability
- 2 Year Warranty
- Available as a DIY kit which can be installed onsite
Australian Made Quality
** Optional quick hitches for front end loaders are available in Challenge (Oz hitch), McCormack MC60/160, Burder, Pearson and Multifit skid steer hitch.
Heavy Duty
Construction
The McCormack Industries loaders are quality made in our QLD factory to outlast the life of your tractor.
Heavy duty construction and greaseable pivot points ensures years of dependable service.
Coupled with McCormack's 40 years of experience and renowned after sales service, these loaders are your best choice in the market.
Optional soft ride system consisting of a nitrogen-filled accumulator assists in taking away vibrations on the loader during travel.
Buy Once, Buy McCormack
Quality you can trust!
FEL Specifications
| MC120 Loader | MC140 Loader | MC160 Loader | MC180 Loader | MC200 Loader | |
|---|---|---|---|---|---|
| Engine HP Range* | 95-120hp* | 120-150HP* | 150-175hp* | 175-250hp* | 250-350hp* |
| Max Lift Height (A) | 3825mm | 4050mm | 4050mm | 4310mm | 4310mm |
| Dump Clearance (B) | 2855mm | 3080mm | 3080mm | 3080mm | 3310mm |
| Max Dump Angle (C) | 80deg. | 80deg. | 80deg. | 80deg. | 80deg. |
| Reach at Ground (D) | 2100mm | 2150mm | 2150mm | 2405mm | 2405mm |
| Crown Back Angle (E) | 28 deg. | 28 deg. | 28 deg. | 28 deg. | 28 deg. |
| Digging depth (F) | 240mm | 240mm | 240mm | 280mm | 280mm |
| Rec. Bucket Width | 2200mm | 2400mm | 2400mm | 2700mm | 2700mm |
| Heaped Capacity | 0.73sq/m | 0.73sq/m | 0.73sq/m | 0.88sq/m | 0.90sq/m |
| Max Lift Capacity | 1550kg | 1550kg | 2000kg | 3150kg | 3150kg |
| Max Blade / Rake Size | 2200mm | 2200mm | 2400mm | 2700mm | 2700mm |
*Engine horsepower rating is used as a guide only to selecting the appropriate loader model. Other factors including the tyre size, chassis shape and axle configuration can affect loader sizing. Contact McCormack Industries for confirmation on the correct loader size.
Tractor Suitability

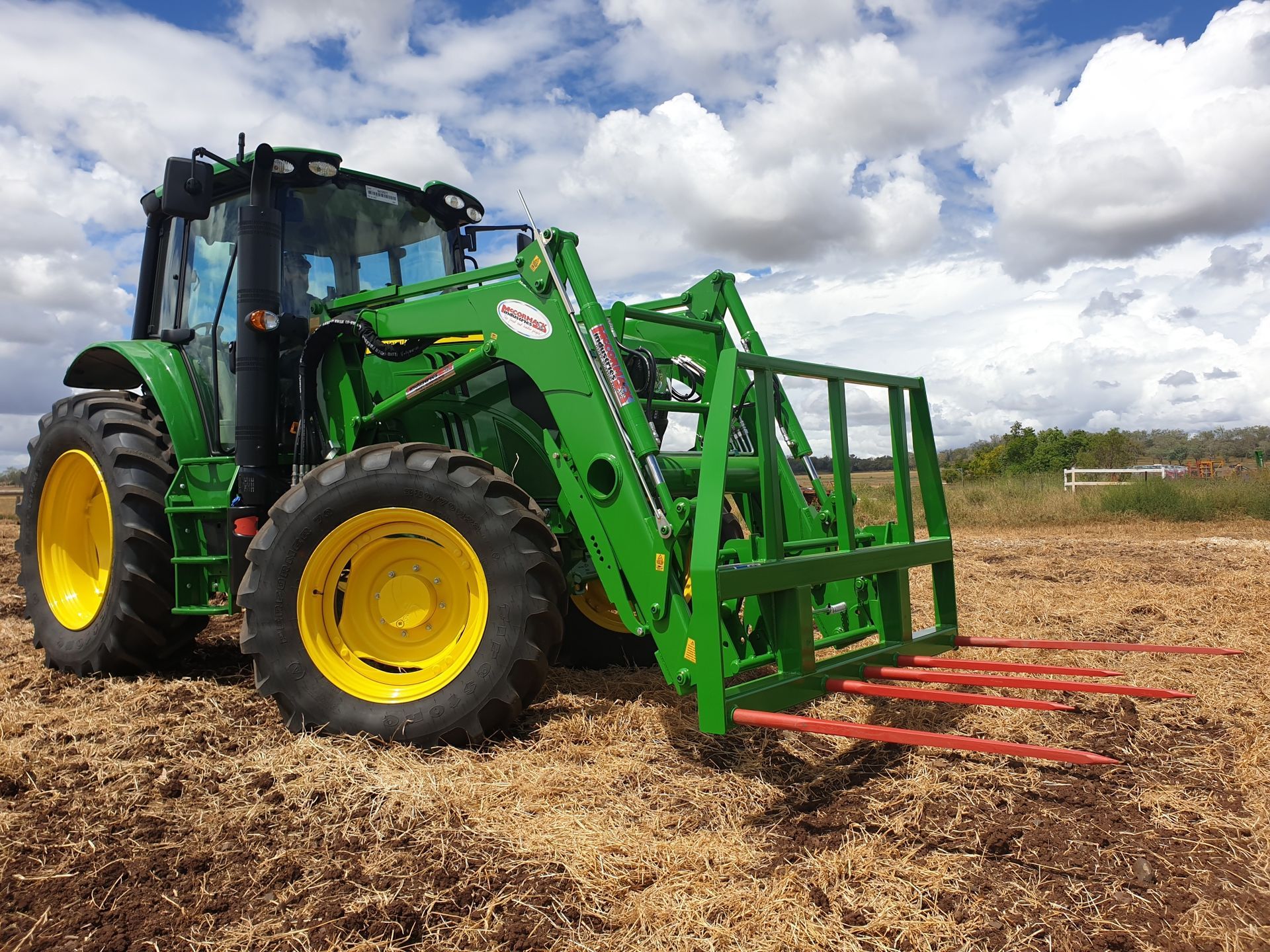

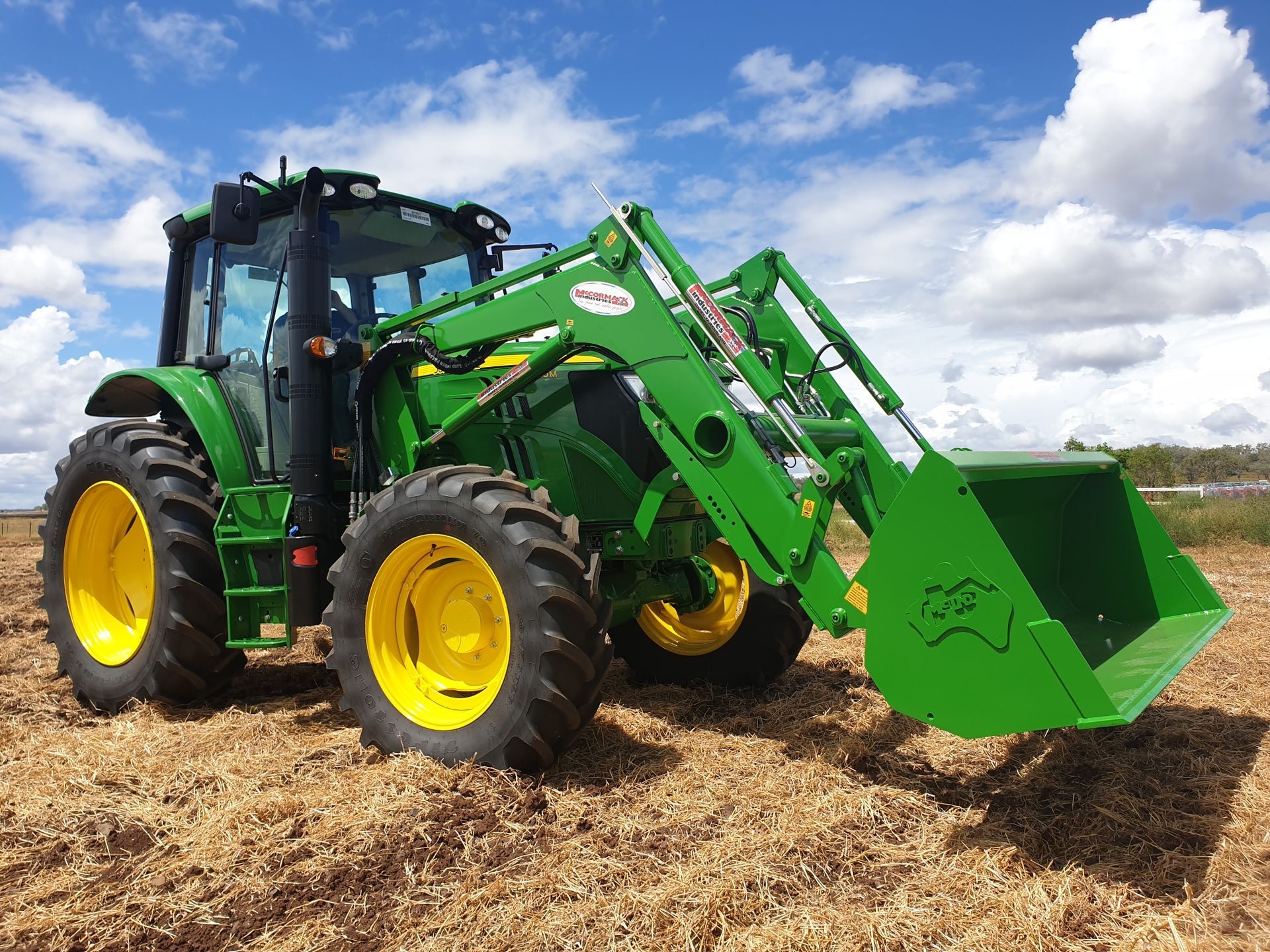

MC120 Front End Loader for 95-120hp Tractors
The Model MC120 versatility and ruggedness make this front end loader ideal for the start of the six cylinder range. Ideally suited for tractors in the 95 to 120 HP Tractor range*. such as:
JOHN DEERE 4040, 4230, 6110, 6120, 6125M, 6220, 6230, 6310, 6320, 6330, 6330, 6400, 6410, 6420, 6420, 6430, 6610, 7400, 7810, 3130, 3350, 3140, 2450, 2650, 3640, 3650, 4020, 4240, 6510, 6105M, 6105R, 6115M, 6130R, 7220, 6430 PREMIUM, 6110M, 6115MC, 6095MC, 5105M, 6120R, 6600, 6210, 5115M, 6110SE, 6310SE, 6120M
NEW HOLLAND TS115, T6010, T5050, TS100, TS110, TD5.110, M100, 8240, T6020 Plus, T4.95, T5.105, TM120
CASE JXU105, 1594, 5150, CVX120, MX120, MXM110, Maxxum 110, Maxxum 110, 970, 1070, 1594, 1896, CX90, MX90C, MX100, MX110, 5120, 5130, 5140, 4240, JXU 95, Farmall 95C, Maxxum 100
MASSEY FERGUSON 5465, 399, 6465, 699, 1085, 1155, 2640, 2705, 3070, 3075, 3090, 3095, 3650, 4270, 6170, 6255, 6265, 6270, 3080, 5710, 5709
McCORMICK G125 MAX, X60.50, X6.420, X4.70, CX105, MC115
As well as DEUTZ DX110, FENDT Favorit 71, 413 Vario and CLAAS 330C
*SOME TRACTOR MODLES NOT AVAILABLE IN KIT FORM

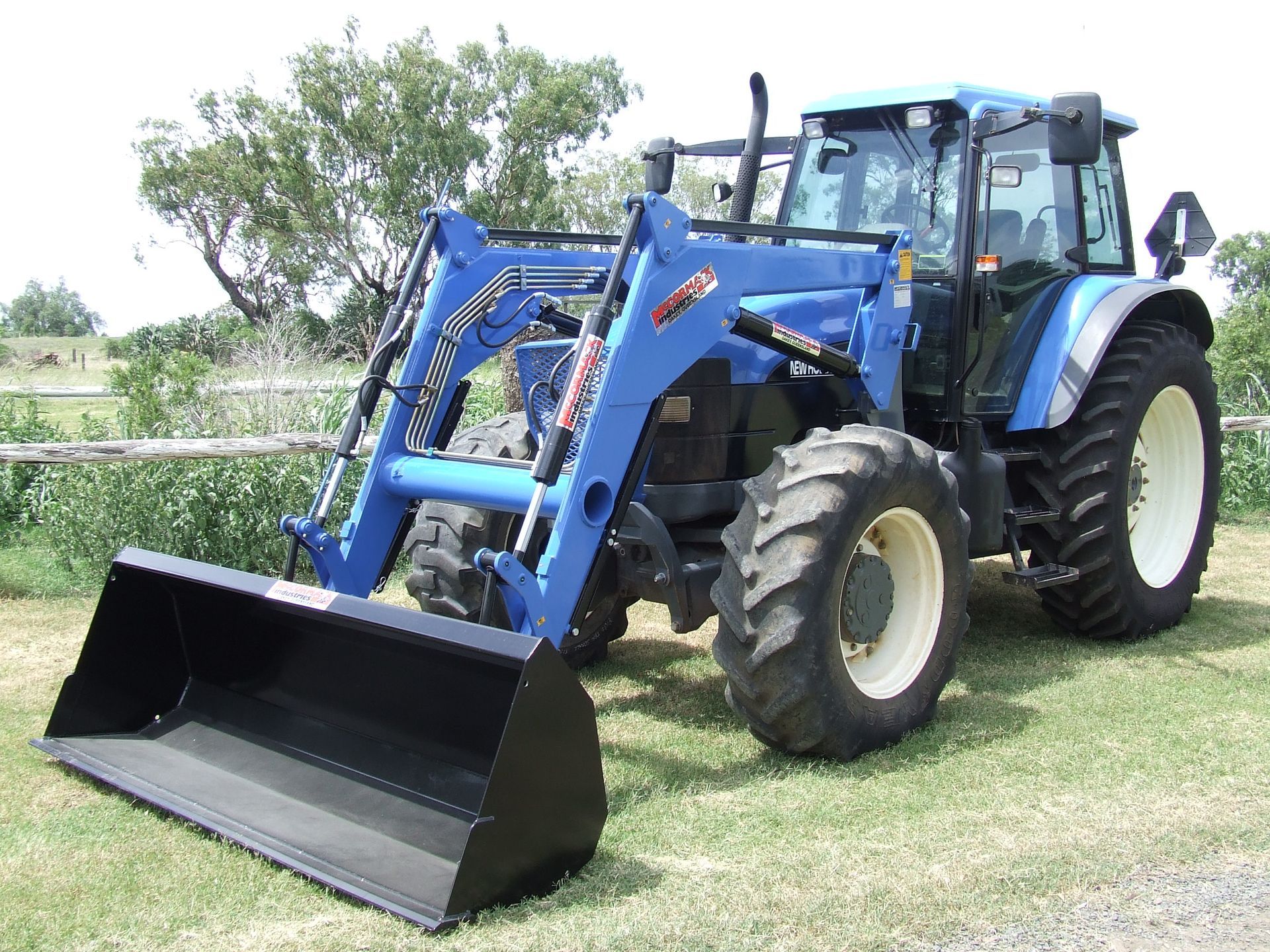

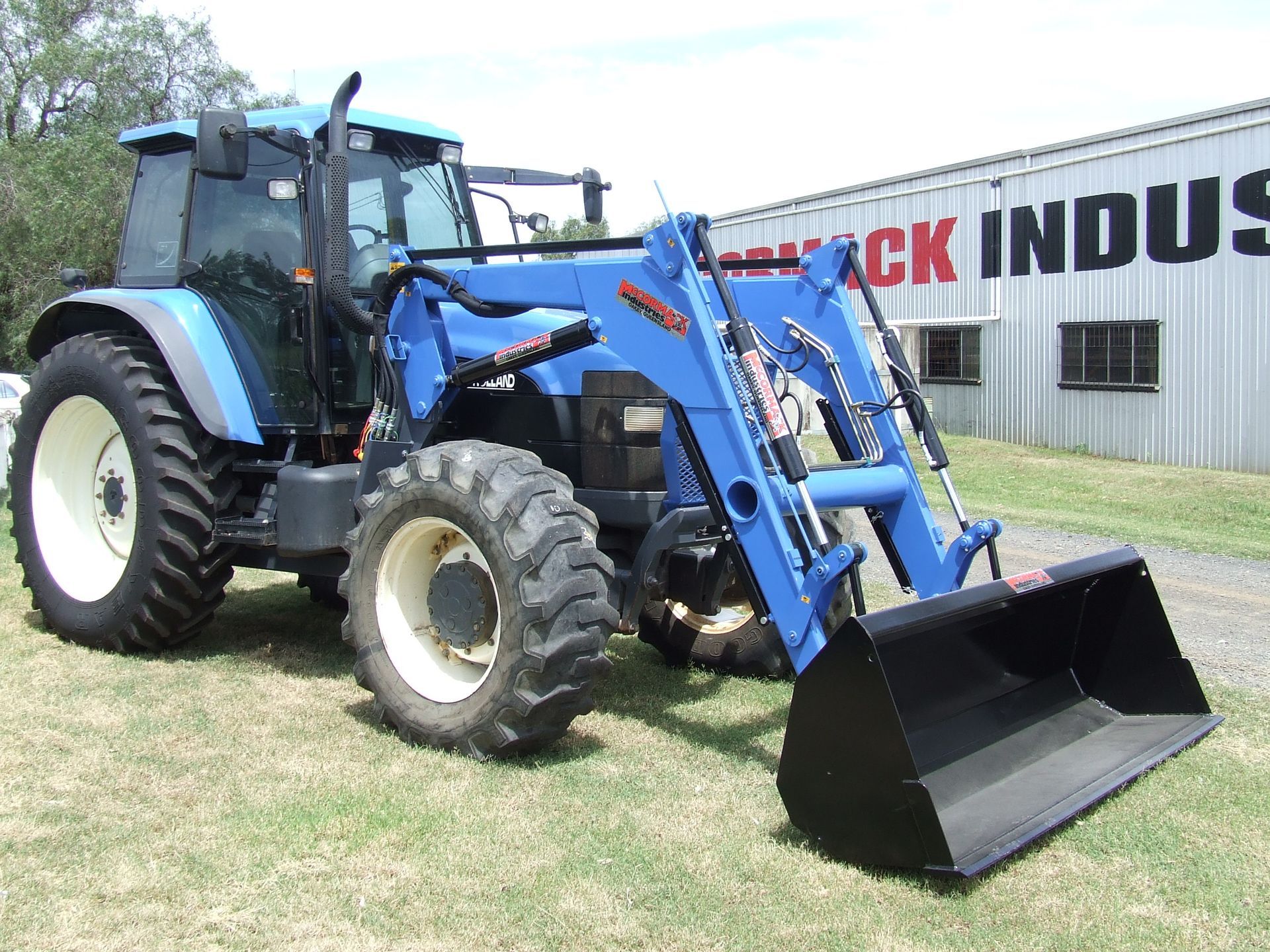

MC140 Front End Loader for 120-150hp Tractors
This is the next step up from the 120, although it has the same lift capacity, it has an increased lift height to over 4 metres. The longer boom arms allow it to clear large wheels and bonnets. The MC 140 loader is ideal for tractors in the 120 to 150 Horse power range* such as:
JOHN DEERE 4055, 4440, 6125M, 6520, 6520, 6530, 6530, 6534, 6620, 6620, 6620SE, 6630, 6630, 6800, 6830, 6930, 7600, 7700, 7710, 7800, 8330, 6820 PREMIUM, 6920 PREMIUM, 7610, 7420, 3650, 4240, 4250, 4450, 4255, 7510, 7800, 6140M, 6140R, 6150M, 6910, 6150R, 7330, 6610, 4050, 6130M
KUBOTA M7152, M7132, M135X, M135GX
CASE CVX120, MX135, MXM155, MX150, Maxxum 130, 1070, 2096, 5150, MX100, MXM140, Maxxum 125, MX120, Puma 150
NEW HOLLAND 8360, TM135, T6020 Elite, T6030 Elite, T6060 Elite, TS130, TS125A, T6030 Elite, TS135A, TM140, TM130, T6050 Elite, T6050 Delta, T6050 Plus, T7.200
MASSEY FERGUSON 3525, 7475, 7475, 7485, 399, 3080, 3635, 6170
DEUTZ 6.45, 5130, M600
*SOME TRACTOR MODLES NOT AVAILABLE IN KIT FORM
MC160 Front End Loader for 150-175hp Tractors
The MC160 loader has the same lift height as the model 140 but the lift capacity is increased to 2000kg. It is best suited for tractors in the 150 to 175 Horse power range* such as:
JOHN DEERE 4455, 4555, 6930, 7810, 7420, 6630, 6830, 7430 PREMIUM, 6170M, 4755, 4440, 4450, 4640, 4650, 4840, 7600, 7800, 6175R, 6170R, 6150M, 7710, 6155M, 6175M, 6150R
KUBOTA M7152
CASE 7220, 7110, MXM155, MXU135, 7220, 1270, 2294, MX170, 7210, MX155, Puma 150
NEW HOLLAND TM150, TS6030, TM165, T7.175, T7.200, T7.220, T7.210
As well as MASSEY FERGUSON 7485 and DEUTZ DX160
*SOME TRACTOR MODLES NOT AVAILABLE IN KIT FORM
MC180 Front end Loader for 175-250hp Tractors
The MC180 front end loader is a heavy duty construction loader which easily handles the stress which comes with a high horse power tractor. Ideal for tractors in the 175 to 250 Horse power range* such as:
JOHN DEERE 4755, 7520 articulated, 7630, 7730, 7930, 8100, 8130, 8270R IVT, 8270R POWERSHIFT, 8300, 8300, 8400, 8410, 8330, 8530, 7830, 8100, 8430 articulated, 7920, 8245R, 4850, 4955, 4960, 8295R, 8320, 7530 PREMIUM, 8310, 8225R, 8310, 8410, 8210, 8210, 7210R, 7230R, 7720, 7820, 7200R, 8330, 6195M, 8520, 8420, 7260R, 8345R, 8320R
CASE 7140, 8910, 8940, 8950, MX240, MX270, MX200, 7110, 7130
MASSEY FERGUSON 6495, 7495, 8280, 7495
NEW HOLLAND G190, T7030, TG230, TVT195, G190, TM190, TM190, T7.235
As well as CLAAS Arion 650
*SOME TRACTOR MODLES NOT AVAILABLE IN KIT FORM
MC200 Front end Loader for 250-350hp Tractors
The MC200 has the same specifications as the 180 but has been beefed up to suit larger 250 to 350hp* tractors such as:
NEW HOLLAND T8.300 and T8.320
*SOME TRACTOR MODLES NOT AVAILABLE IN KIT FORM
