Front End Loader (FEL) 50-95hp

Widely known as the "Front End Loader People" since 1984, McCormack Industries has produced the widest range of Front End Loaders for new and used tractors including the AU and MC models which are ideal for tractors ranging from 50hp to 95 horse power.

Unlike some loaders on the market these loader arms are Australian quality made and durable.

Backed by ongoing support and service, all McCormack Industries Loaders have replaceable parts to ensure the longevity of your loader and attachments.

FEL Quoting Enquiry Form

FEL Standard

Inclusions

McCormack Industries Loaders come standard with:

Quick Hitch**
Self-leveling Mechanism
TMA Loader standard compliance
Diverter for 3rd function hydraulics
2 Bank Control Valve with joystick
Greaseable pivot points
Level Gauge
Replaceable Hardened Bushes (MC Series)
2 Year Warranty (MC Series)
Quick detach system (from tractor)
Paint colour to match your machine's brand
Reliable aftersales support and spare parts availability
Available as a DIY kit which can be installed onsite

Australian Made Quality

** Optional quick hitches for front end loaders are available in Challenge (Oz hitch), McCormack MC60/160, Burder, Pearson and Multifit skid steer hitch.

Heavy Duty

Construction

The McCormack Industries loaders are quality made in our QLD factory to outlast the life of your tractor.

Heavy duty construction and greaseable pivot points ensures years of dependable service.

Coupled with McCormack's 40 years of experience and renowned after sales service, these loaders are your best choice in the market.

Optional soft ride system consisting of a nitrogen-filled accumulator assists in taking away vibrations on the loader during travel.

Buy Once, Buy McCormack

Quality you can trust!

FEL Specifications

	AU65 Loader	AU75 Loader	MC80
Engine HP Range*	50-70hp*	65-95hp*	75-95hp*
Max Lift Height (A)	3190mm	3340mm	3490mm
Dump Clearance (B)	2305mm	2455mm	2540mm
Max Dump Angle (C)	46 deg.	46 deg.	80 deg.
Reach at Ground (D)	2000mm	2000mm	2000mm
Crown Back Angle (E)	48 deg.	48 deg.	28 deg.
Digging depth (F)	190mm	190mm	240mm
Rec. Bucket Width	1800mm	2100mm	2100mm
Heaped Capacity	0.5sq/m	0.5sq/m	0.51sq/m
Max Lift Capacity	1000kg	1000kg	1350kg
Max Blade / Rake Size	1800mm	2000mm	2200mm

*Engine horsepower rating is used as a guide only to selecting the appropriate loader model. Other factors including the tyre size, chassis shape and axle configuration can affect loader sizing. Contact McCormack Industries for confirmation on the correct loader size.

Tractor Suitability

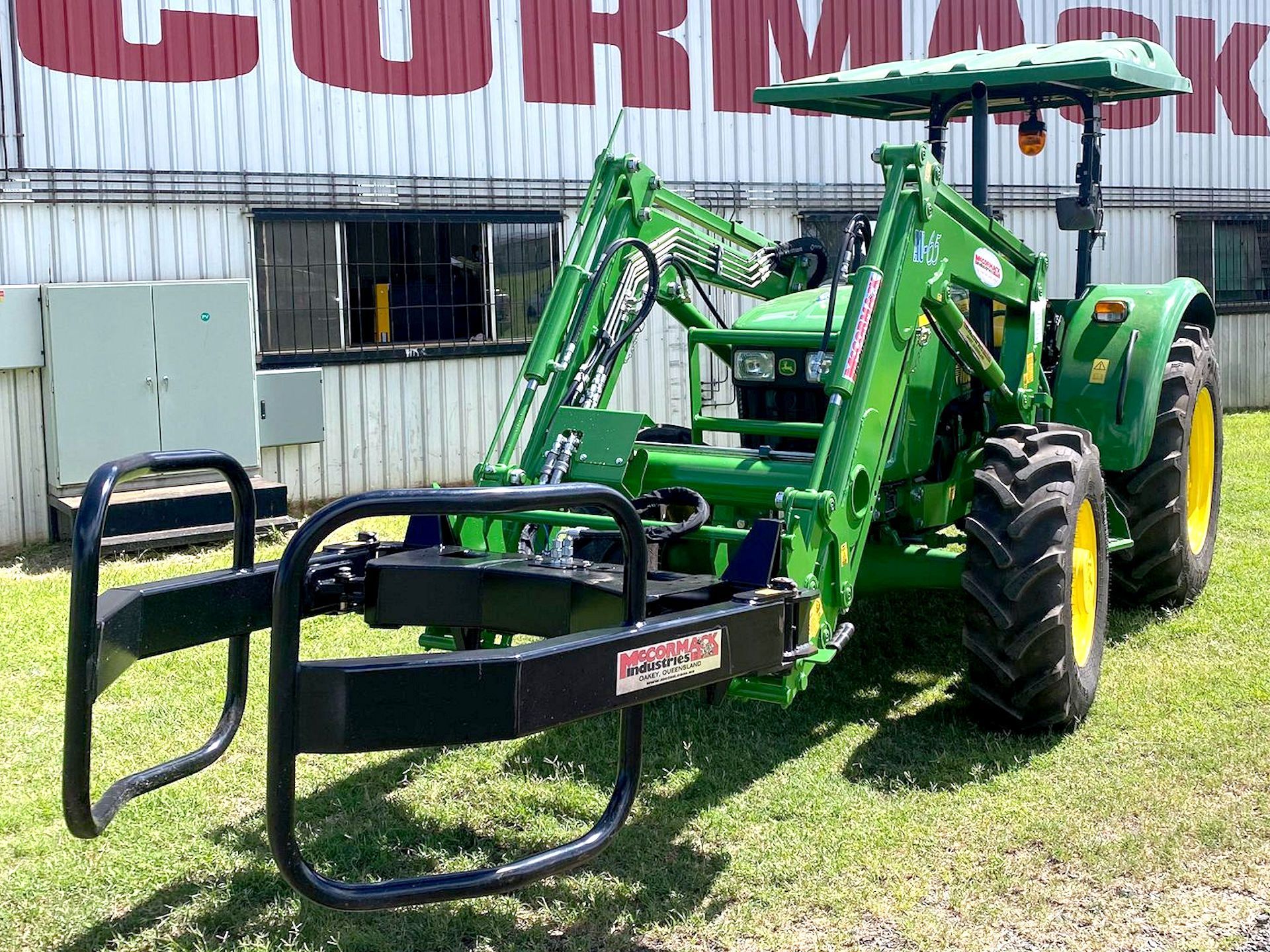

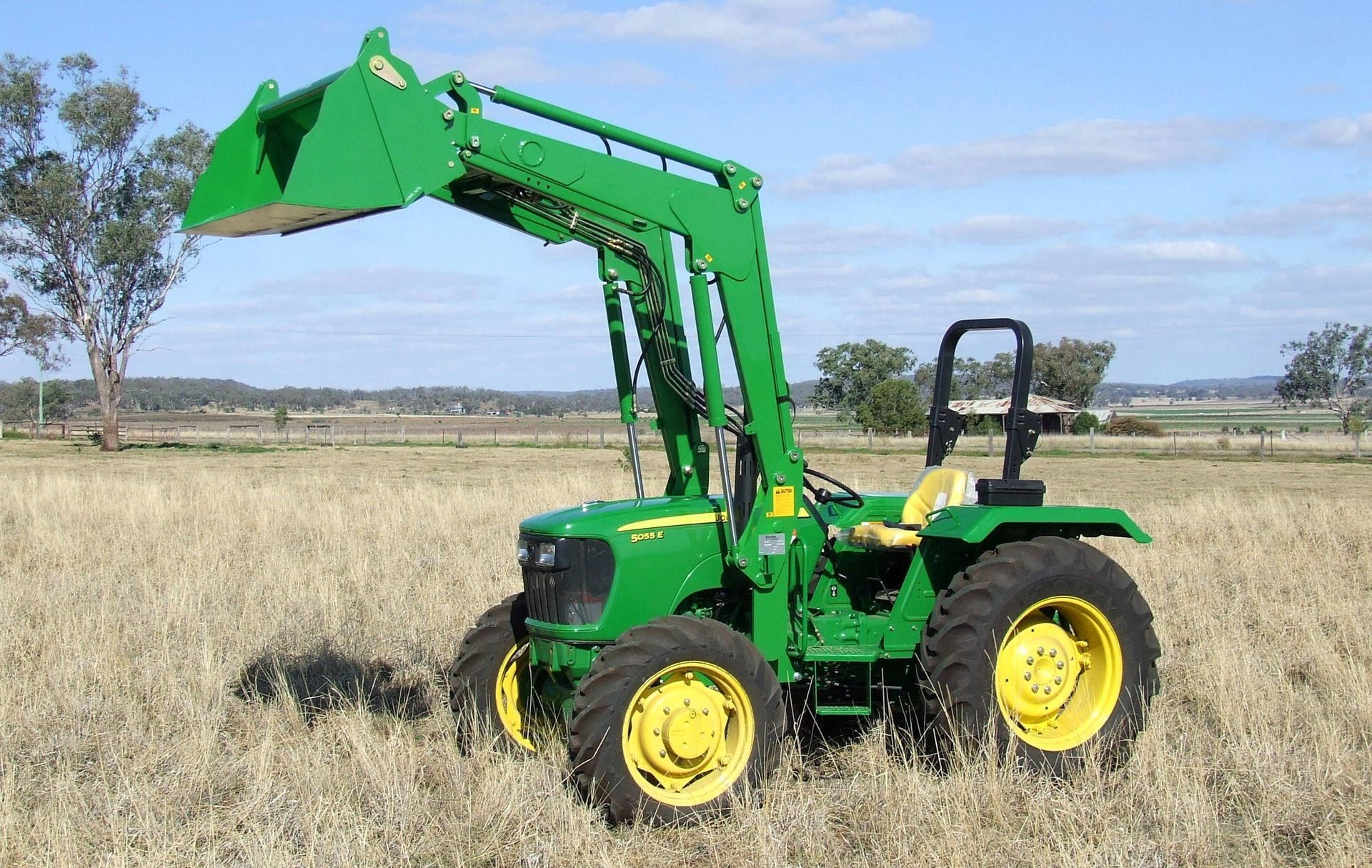

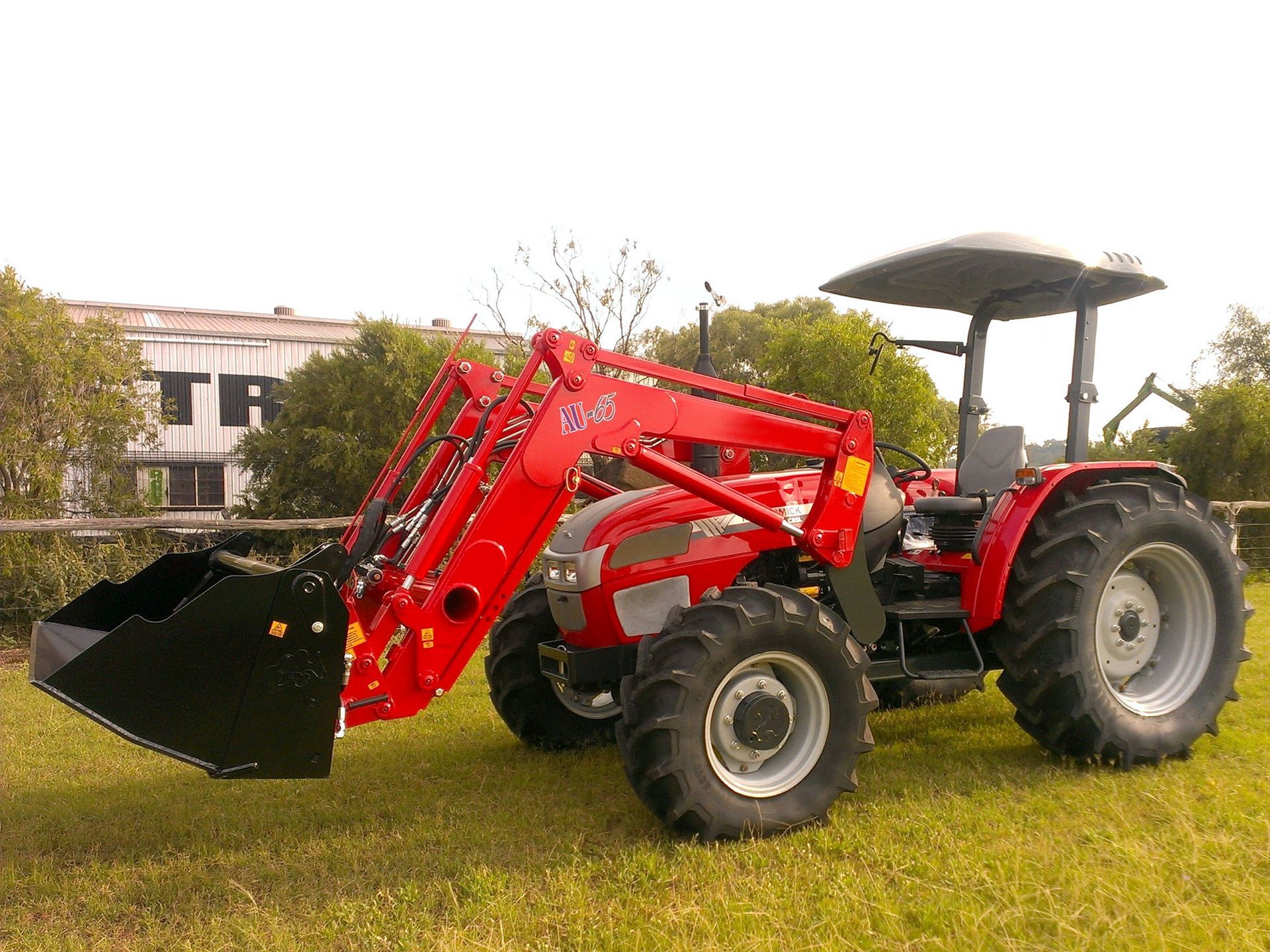

Front End Loader for 50-70hp Tractors

The McCormack AU65 front end Loader with its low profile and economic construction makes it ideal for shifting hay and light bucket work. The loader is suited to the 50 to 70HP tractor range*such as:

JOHN DEERE 5065M, 5045D, 5075E, 5320, 5510, 5065E, 5055E, 1850, 5045E, 5103, 5105, 5055D

KUBOTA M7040SUD, L5740, M4500, MX5000, MX5100, M5500, M7040

MASSEY FERGUSON 254, 355, 2625 Utility, 265, 165, 2615

McCORMICK C75L, C85L

NEW HOLLAND TT55, TN60DA, TN75F, TT4.65 and 4835

CASE JX55, CX60 and 3230

*SOME TRACTOR MODLES NOT AVAILABLE IN KIT FORM

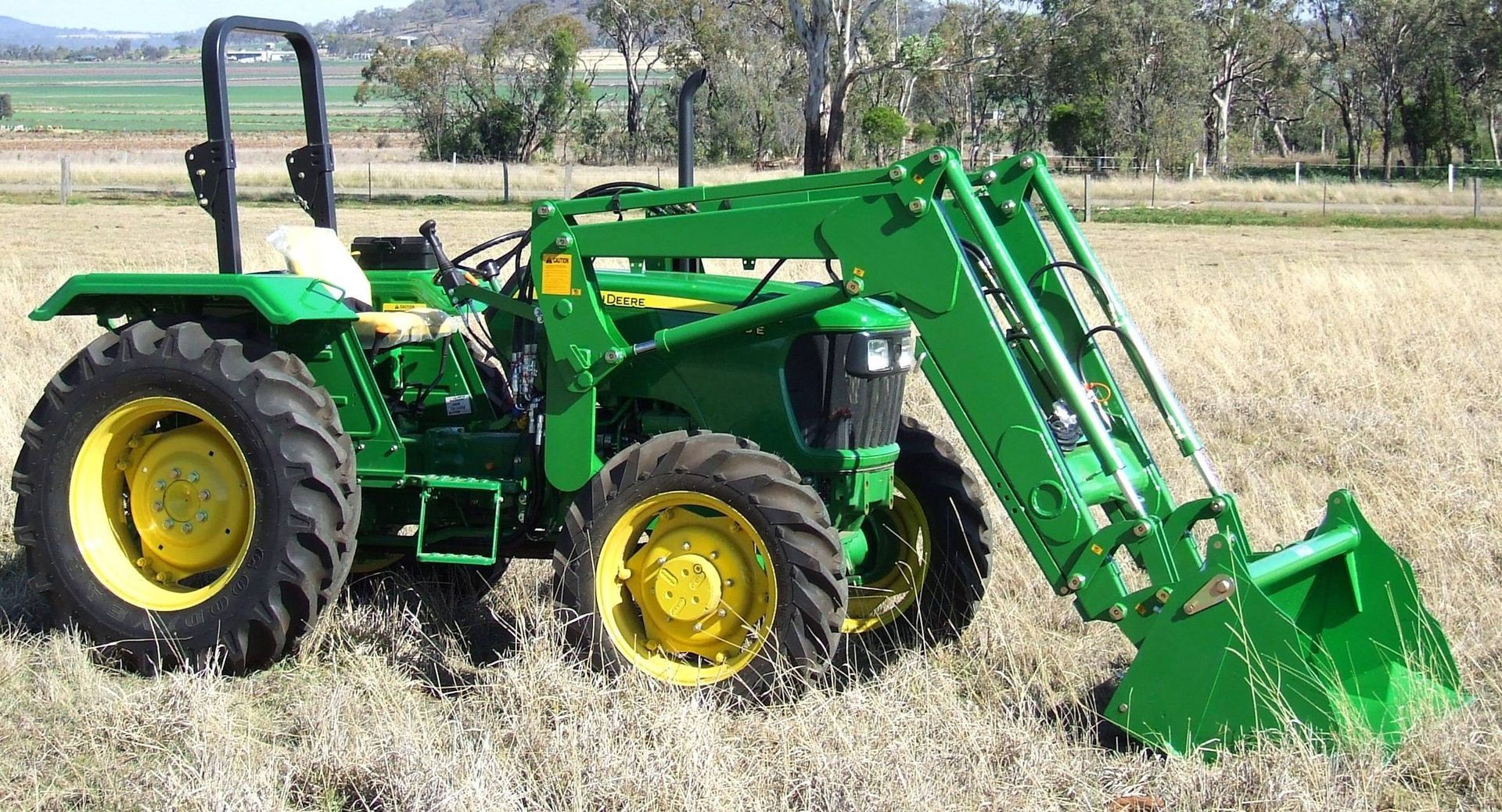

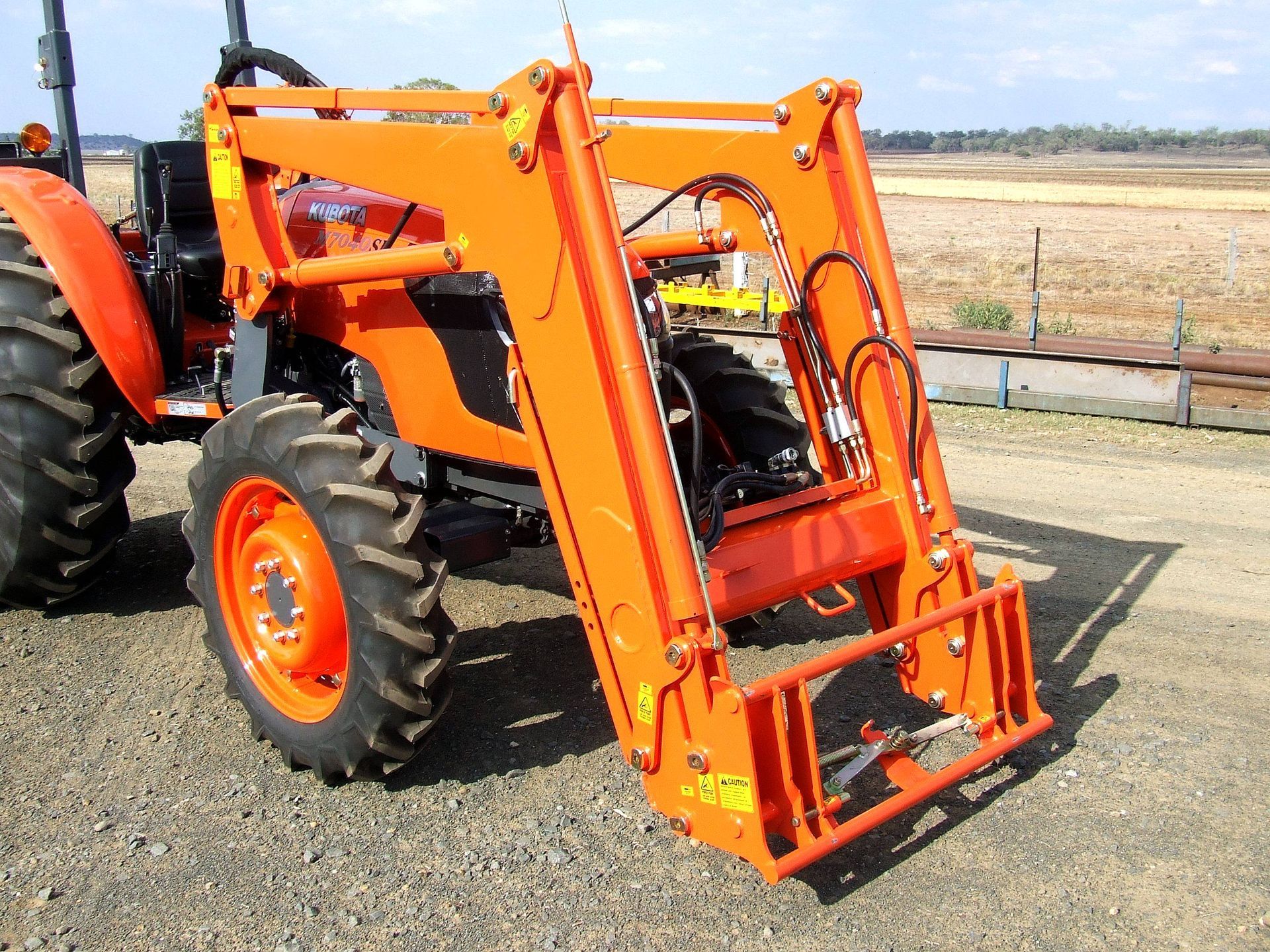

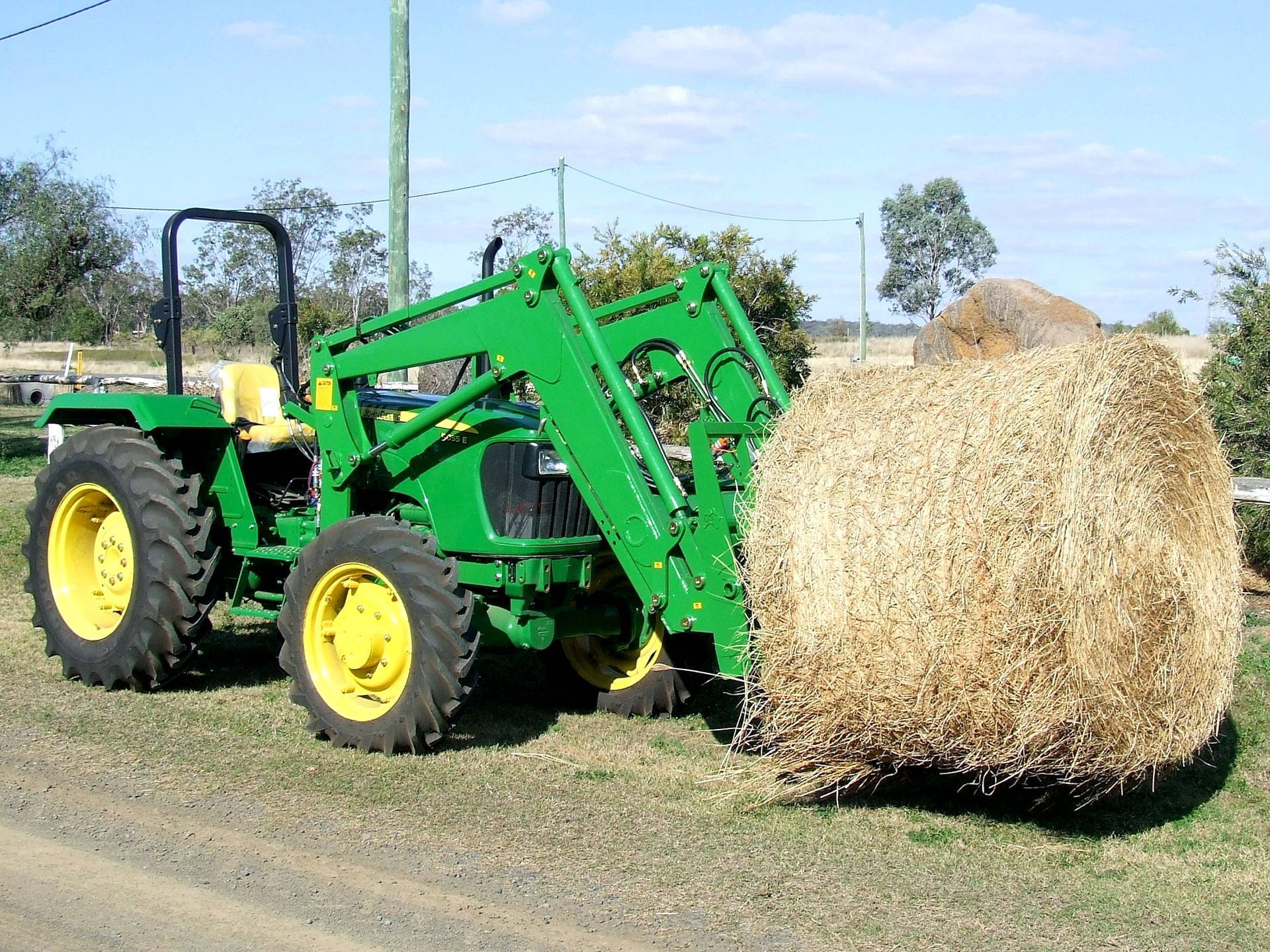

Front End Loader for 65-95hp Tractors

The budget-orientated McCormack AU75 loader is similar in size to the Model 80 Loader, it has been designed with reduced capacity and economy in mind. This makes it perfect for light to medium applications. It is ideally suited to 65 to 95 HP tractors* such as :

JOHN DEERE 2140, 5055E, 5075E, 5083E, 5085M, 5090R, 5093E, 5095M, 5101E, 5103, 5225, 5325, 5425, 5425, 6300 (75hp), 5045E, 5620, 5083E LIMI, 5075M, 5080M, 5065E, 5080R, 5203, 5520N, 5520, 5101E LIMITED, 5420, 5525, 5720, 5510, 5100GF

KUBOTA , M6040, M7040, M8030, M7040SU, M9540, M8540, M8580, M7950DTM

CASE 3230, 685, CX80, JX80, 685, JX90, CX90, JX60, JX85

NEW HOLLAND TD70D, TL80, TD80D, TS90, TD90D, TT4.75, TL90, TD5.75, TT75, TD5.90, 5640, 7840

MASSEY FERGUSON 168, 298, 373, 390, 5435, 275, 5445

As well as McCORMICK CX85 and MB85, LANDINI ATLAS7, LAMBORGHINI 774-85N

*SOME TRACTOR MODLES NOT AVAILABLE IN KIT FORM

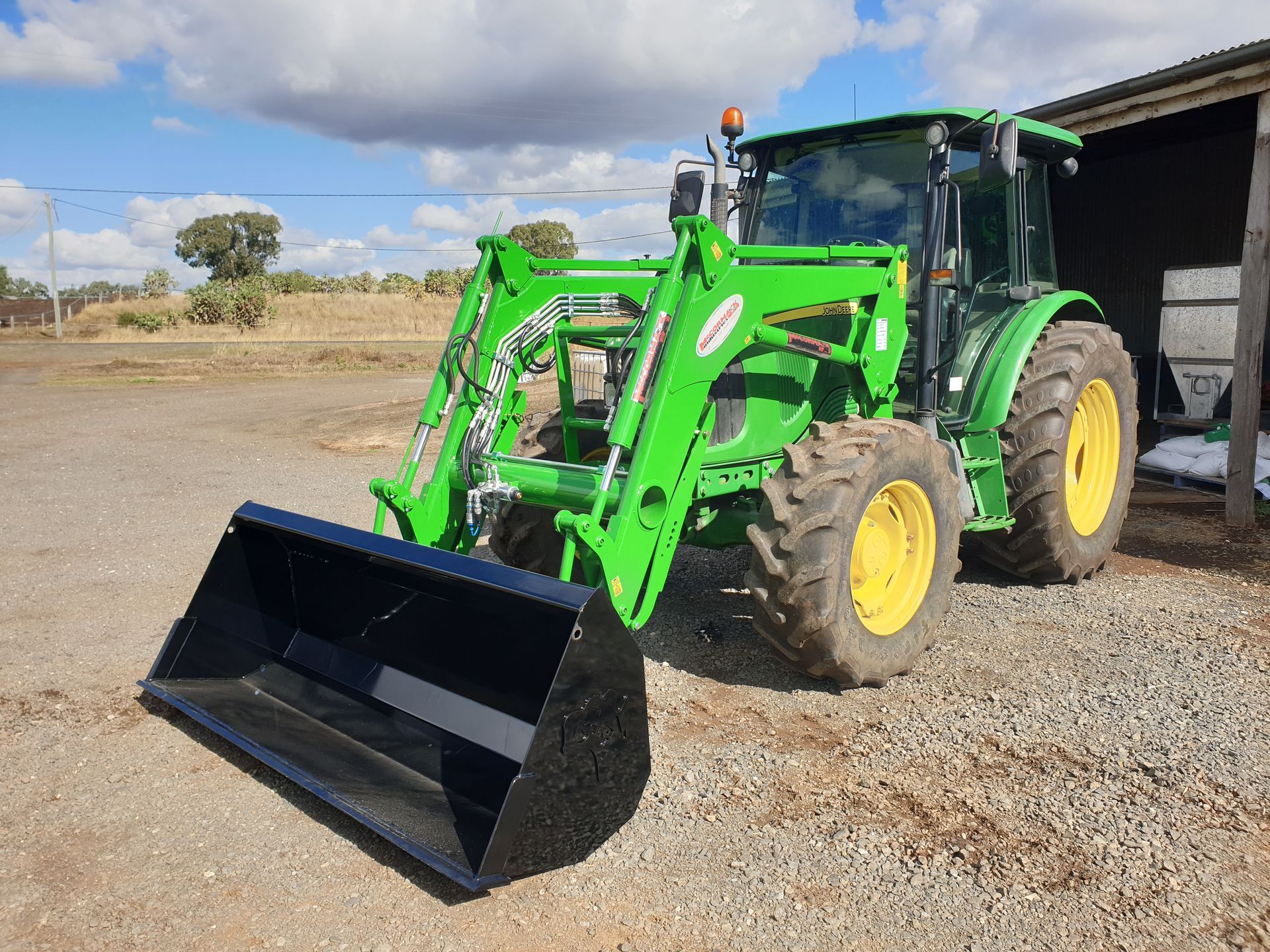

Front End Loader for 75-95hp Tractors

The Model MC80 loader is a very versatile and heavily constructed loader ideally suited for bucket and blade work, loading hay or handling silage. Ideally suited for tractors in the 75-95 horse power range such as:

JOHN DEERE 6115D, 4020, 2850, 3140, 5075E, 5090R, 5095M, 5325, 5410, 5420, 5425, 5525, 5720, 5720, 5820, 6010, 6100D, 6110, 6115D, 6120, 6130, 6200, 6220, 6230, 6330, 6420SE, 6430, 5085M, 2040 (70hp), 2040S, 3020, 3130, 2130, 2140, 2450, 2650, 2700, 2800, 4020, 5620, 5520, 5085M, 5085M, 5075M, 5080R, 6090MC, 5083E, 5093E, 6300 (75hp), 6095MC, 6100, 6210, 6320, 6300 (90hp), 6110SE, 5100R, 5100M, 5510, 6100E, 5101E, 6090M, 5075M, 5095M

KUBOTA M105X, ME9000, ME8200, M9000, M8200, M9540, M100X, M8580, M7950DTM, M95X

CASE 5120, JX80, JX85U, MXU100, 956XL, 830, 895, 1394, 1490, 1494, CS75, CX70, CX80, CX90, JX85, JX95, MX80C, JX80U, 595, 685, 885, 4210, 4230, 4240, JX90, JX100U, JXU 95, Farmall 95C

MASSEY FERGUSON 5435, 390, 4255, 435, 5255, 5340, 5355, 5425, 5435, 5445, 5455, 168, 175, 178, 185, 188, 194, 275, 274, 393, 698, 1085, 3050, 3060, 3065, 4245, 5285, 6130, 4707, 4708

NEW HOLLAND 5050, 6640SL, TD90D, TL90A, TS100, TS115, TS90, T5060, TL90A, TD5.90, T4.75, TT4.75, T4.105, TD5.75, TD5.100, T4.85, T4.95, TD5.110, T5.105, TT75, TL80, 5640, 7840

As well as KIOTI DX100, MAHINDRA 7480, 8000, DEUTZ DC610, DX4.30

*SOME TRACTOR MODLES NOT AVAILABLE IN KIT FORM
