Lifting

Lifting Jibs
McCormack Industries manufactures a wide variety of lifting jibs to suit most industries and applications. They are specifically designed for material handling and maneuvering loads. They can be manufactured to suit a wide range of wheel loaders and Telehandlers. All jibs are tested and certified to relevant Australian Standards.
  • Fully certified and tested to Australian Standards
  • Durable and rugged construction
  • Increase safety and productivity
  • Capacities available up to 6000 kilograms
  • Available in a range of lengths and configurations
  • Available to suit any machine type
  • All jibs include rated hook and shackle
Back to Top

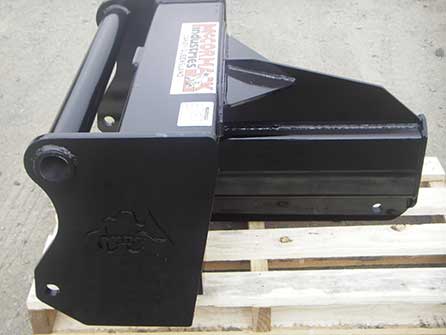

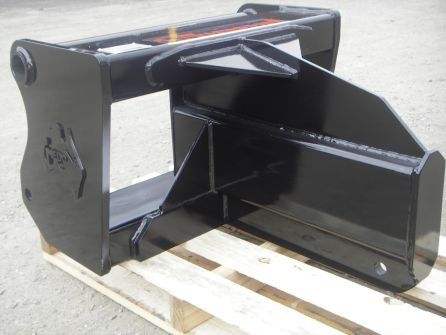

Short Boom
The Short Boom Lifting Jib is available with a maximum lift capacity of 5000kg. It is available to suit all Telehandlers and Wheel Loaders. The compact design is light for its strength, meaning only a small weight must subtract from the machines rated lift capacity.
Back to Top

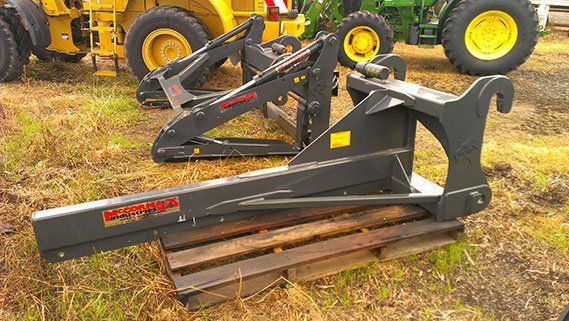

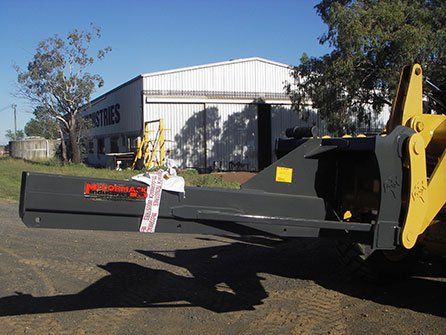

Long Boom
The Long Boom Lifting Jib is better suited for applications where further reach and lift height are required. Again, the Jib is available to suit all models of Telehandler and Wheel Loader.
There are three lifting points along the jib, with a maximum capacity of 5000kg at the base to 1000kg at full reach (approx. 2.4m).
Back to Top

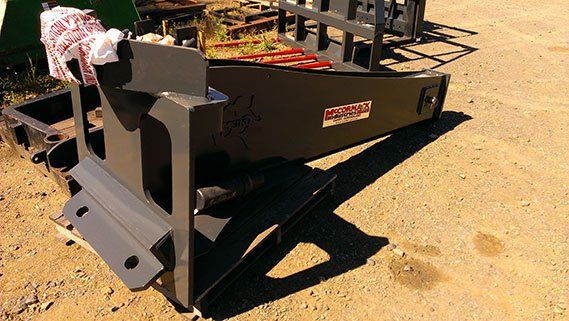

Extendable Boom
The Extendable Boom Lifting Jib is the most versatile Jib in the range. It has the convenience on an enormous 4.2m reach, without the inconvenience of a permanent long boom when heavier loaders are being manoeuvred off the base lift points. That is, the boom can be retracted to increase manoeuvrability when the extra reach is not required.
There are seven lifting points available with a maximum capacity of 6000kg to 1000kg at full reach.
The Jib is available to suit all models of Wheel Loader.
Back to Top

Forklift Lifting Jib

Lifting Jibs are also available for forklifts. Lifting from a forklift without a secure jib greatly increases the risk of damaging the load and endangering the operator. Lifting off one tyne not only overloads the single tyne, but also causes instability in the forklift.

McCormack Industries Forklift Jibs are easily secured by chain to the forklift mast and are available in long boom and short boom variations, with lifting capacities varying from 1000kg to 4000kg.

Features
  • Fully certified and tested to Australian Standards
  • Durable and rugged construction
  • Increase safety and productivity
  • Capacities available up to 1500 kilograms
  • Available to suit no standard forklift tyne sizes upon request
  • All jibs include rated hook and shackle
Forklift Slip-On Jib – Long Boom
  • 4 lifting points with a maximum capacity of 1500kg ranging to 825kg at full reach
Forklift Slip-on Jib – Short Boom
  • Single lifting point with a capacity of 1000kg to 4000kg depending on model
Back to Top

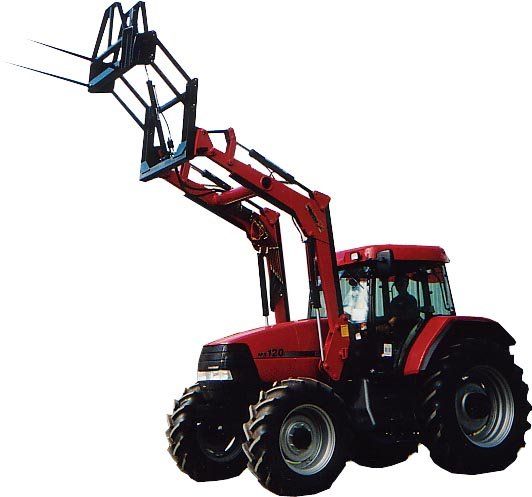

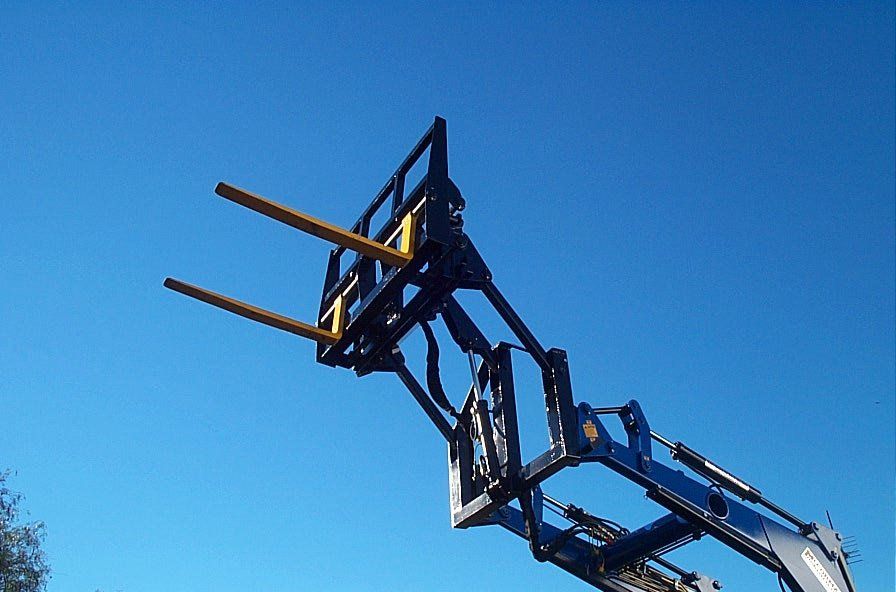

Extra Lift

McCormack Industries offers a unique solution to gain extra height from a tractor loader. Depending on the machine, the Extra Lift attachment can gain as much as an extra metre of lift height.

Simply hitch the Front End Loader to the Extra Lift and then hitch the Extra Lift to the final attachment, e.g. Pallet Forks.

The Extra Lift is a perfect tool for hay handling, allowing a front end loader to stack bales higher without inhibiting the use of the machine, because it can be removed when finished
.

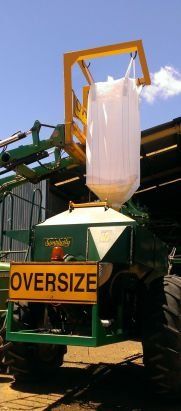

Bag Lifter

A common issue when loading fertiliser or seed into an air seeder is having enough lift height to reach over the top of the bin. McCormack Industries manufactures a 1-tonne bag lifter to solve this problem, increasing the lifting height of your tractor loader. This bag lifter can be made to suit any make of tractor loader or telehandler. Depending on the make of machine, the lifting height can be increased by up to 1.5 metres. The four hooks on the upper part of the frame make lifting 1-tonne bags a much safer and more secure practice.
  • Approximate mass of 180kg
  • Manufactured to suit any make of tractor loader or Telehandler
  • Makes unloading 1 tonne bags safer and more efficient
Back to Top
