Blade/Stick Rake

Blade/Stick Rake

Back to Top

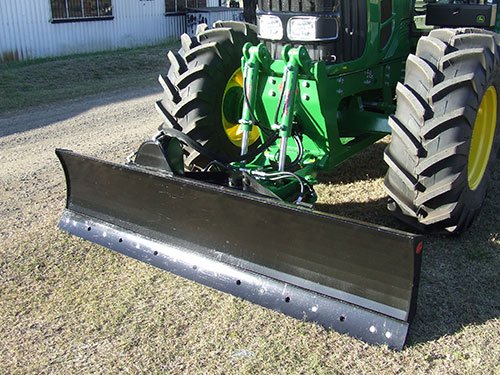

Blades
For Earthmoving and Clearing applications
McCormack Industries manufactured blades can be made to suit all makes of tractor loaders or skid steers; also this blade style is the same which is fitted to our Underaxle and Overaxle assemblies. Widths range from 1.8 metres to 2.7 metres with custom sizes available upon request. All blades are fitted with reversible bolt on cutting edges and are approximately 500mm high standard with other heights available. Our blades can be mounted to your tractor or skid steer using our universal backing frame. This allows for optional extras like our angle or tilt assemblies to be fitted.
  • Rugged construction and reliability
  • Reversible bolt on cutting edge standard
  • Available in widths from 1.8 to 2.7 metres in a standard height of approx. 500mm
  • Compatible with our universal backing frame to suit all makes of tractor loader or skid steers
  • Optional extras available such as hungry boards, folding wings, depth skids, angle and tilt assemblies and grill protection
Back to Top

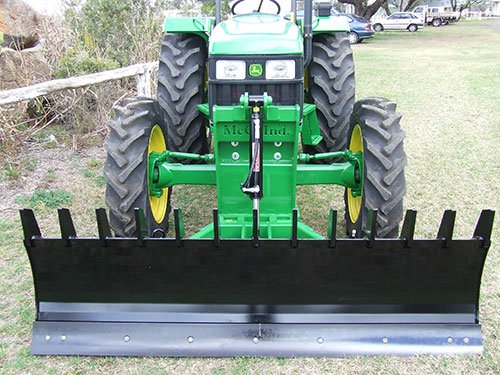

Blade/Rake
A popular configuration to our standard blade is to add rake teeth to the top side, with the addition of our universal backing frame it allows the one blade to be flipped upside down for blade work as well as raking. These 20mm teeth are spaced approximately 150mm apart. These are available in similar widths as standard blades and can be fitted with similar optional extras.
  • Rugged construction and reliability
  • Reversible bolt on cutting edge standard with 20mm rake teeth on opposite side
  • Available in widths from 1.8 to 2.7 metres in a standard height of approx. 500mm
  • Compatible with our universal backing frame to suit all makes of tractor loader or skid steers
  • Optional extras available such as folding wings, depth skids, angle and tilt assemblies
Blade Accessories
McCormack Industries offers a variety of accessories that can be added to any blade
Back to Top
Wing Assemblies
To extend the width of your blade or blade/rake tipped wings can be added, these will increase the width of your attachment by an extra 1 metre, Increasing the efficiency and productivity of your operation. These are also made to fold back by undoing 3 bolts each side to allow for ease of transportation.
Back to Top
Manual Angle
This is a simple accessory for all blades, blade/rakes and stick rakes. It puts the blade on an angle to make grading easier. This product fits between one of the attachment mounts and the backing frame on one side. The other blade mount on the other side stays locked to the backing frame, thereby giving the blade an angle to the backing frame. It can be easily removed and installed by simply removing and replacing two pins.
Back to Top
Depth Skids
When using a blade, blade/rake or stick rake the depth of your attachment can be controlled by fitting Depth Skids. The blade can be lowered until the depth skids contact the ground. These have a range of holes giving 20mm adjustments in depth.
Back to Top
Hungry Boards
To increase the capacity and to protect your machine, hungry boards can be fitted to the top of the blade or blade/rake. These can be either solid filled, barred or mesh. Heights and configurations can be modified to suit customer requirements and needs.

Photos show a solid filled hungry board, also shown with depth skids, hydraulic tilt assembly and bolt on wings.
Back to Top
Universal Backing Frames
McCormack Industries uses a universal mounting frame to mount our blades, blade/rakes and stick rakes. This allows for these attachments to be reversed and also for manual angle to be fitted. A range of different attachment lugs can be fitted to this frame from tractor loader, skid steer or telehandler. Attachments are pinned onto the frame with two 32mm pins.

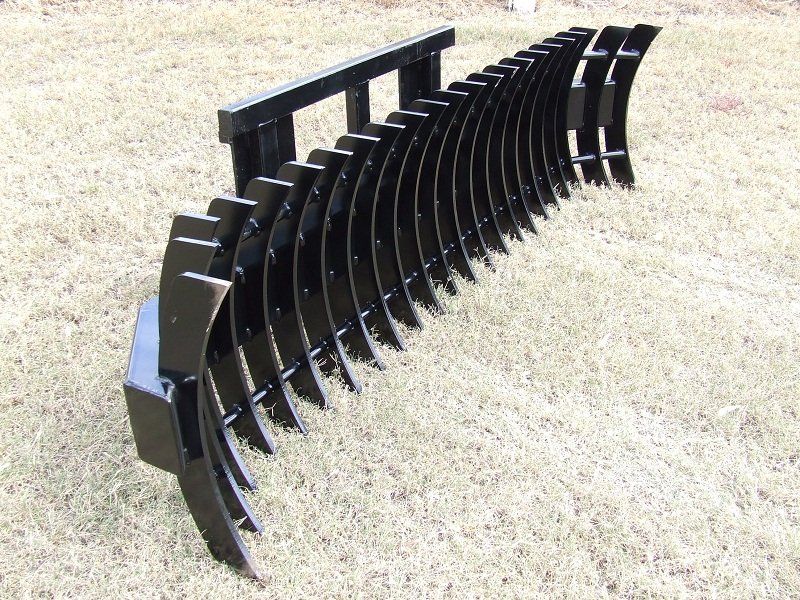

Stick Rake Range
McCormack Industries stick rakes are made in our Aubigny workshop using top quality materials ensuring a long lasting quality product. We have two categories of rake and many sizing options available.

Our medium duty rake is great for general clearing work and duties, while the heavy duty rake is ideal for large areas and heavy clearing. Both rakes are double sided to extend life and durability, both have the option of “straight” or “tipped” models and both can be fitted to suit any machine either with a backing frame or have lugs welded directly onto the back.
Back to Top
Medium Duty Stick Rake
  • 16mm rake teeth, Approx 100mm spacing, Rake height 700mm
  • Tipped wings are 300mm wide.
  • All Medium Duty Rake widths can be from 1500mm - 3000mm overall
  • Rake is double sided for extended life (only possible if backing frame is purchased separately)
Style Rake Width
Straight 1800mm
2100mm
2400mm
2700mm
3000mm
Tipped 1800mm overall
2100mm overall
2400mm overall
2700mm overall
3000mm overall
Back to Top
Heavy Duty Stick Rake
  • 25mm rake teeth, approx. 100mm spacing, height 900mm
  • Tipped wings are 300mm wide.
  • Heavy Duty rake widths vary from 2400mm - 4000mm overall but can be made larger on request
  • Hungry board an optional extra
  • Rake is double sided for extended life (only possible if backing frame is purchased separately and without hungry board)
Style Rake Width
Straight 2400mm
2700mm
3000mm
3400mm
4000mm
Tipped 2400mm overall
2700mm overall
3000mm overall
3400mm overall
4000mm overall
Back to Top

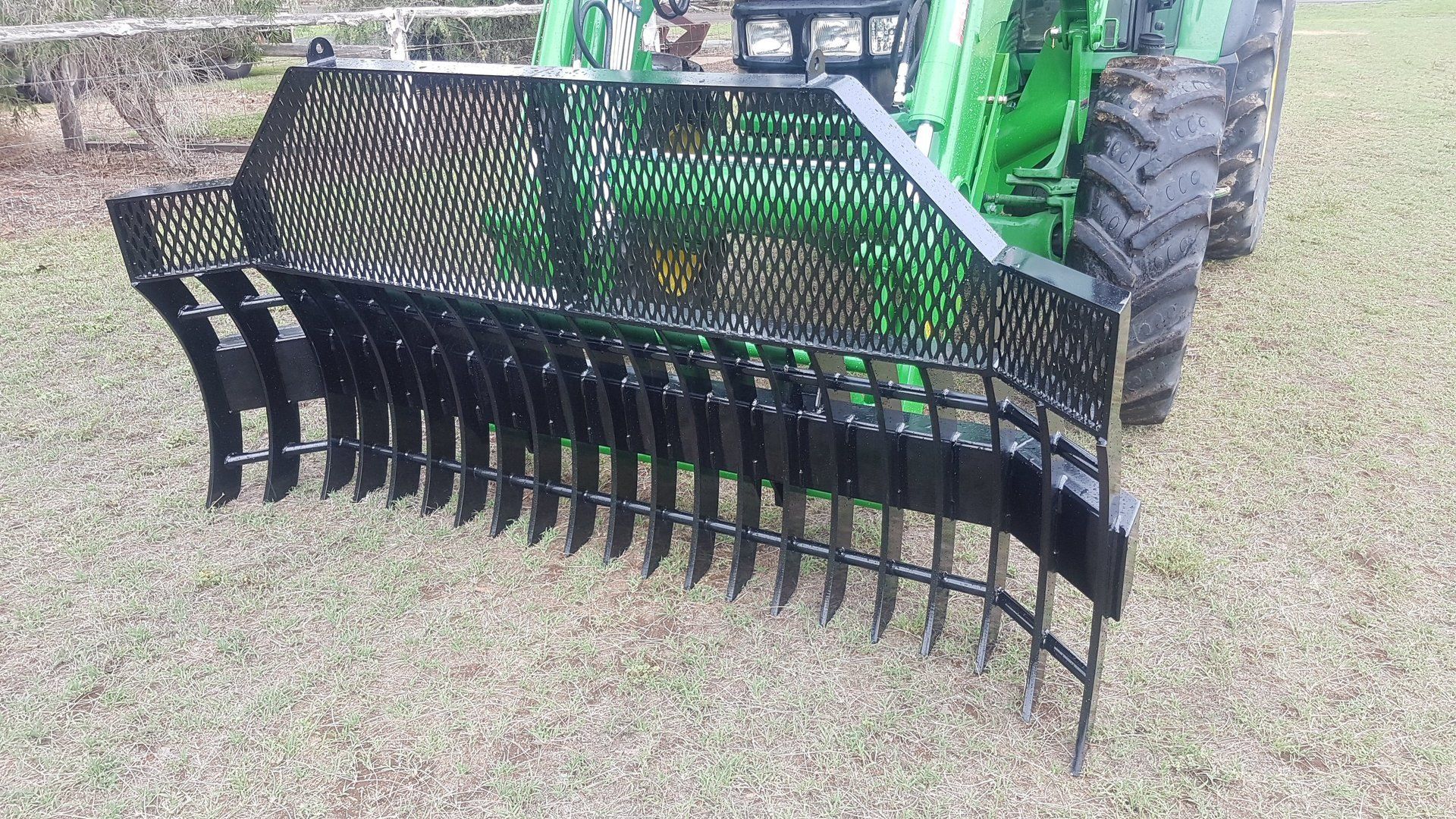

Stick Rake Hungry Board
  • Built to protect the machine from loose stick and objects
  • Diamond pattern mesh to allow visibility
  • Available on all width of medium and heavy duty stick rakes
  • Different heights are available upon request
Back to Top

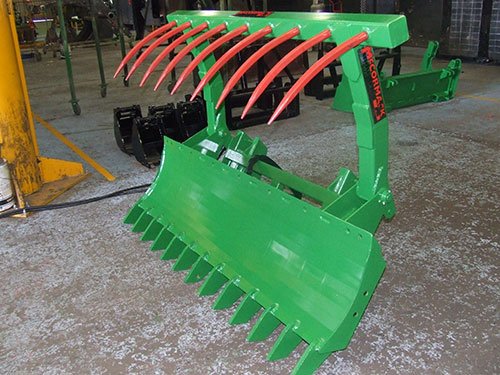

Grabs
Available for both Blades and Stick Rakes
Increase the functionality with any stick rake or blade/rake by adding a spear grab. The grab retracts fully out of the way for typical use, but can be lowered to grip and lift what’s been collected. Spears are replaceable if bent.

A Spear Grab addition provides a fast way to move trash across a paddock without the need of pushing it along the ground all the way to the pile.
Back to Top
Grabs
Available for both Blades and Stick Rakes
Increase the functionality with any stick rake or blade/rake by adding a spear grab. The grab retracts fully out of the way for typical use, but can be lowered to grip and lift what’s been collected. Spears are replaceable if bent.

A Spear Grab addition provides a fast way to move trash across a paddock without the need of pushing it along the ground all the way to the pile.
